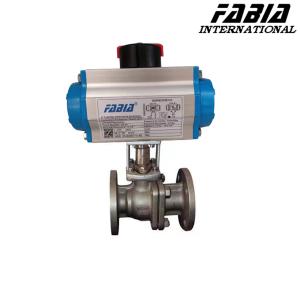

DN40 Industrial Pneumatic Flange CF8 Ball Valve High Pressure Two Piece

Brand Name : FABIA

Place of Origin : China

Certification : ISO9001,CE,CCS,DNV

Model Number : 1/8 inch ～ 36 inch

MOQ : 1 set

Price : Negotiable

Packaging Details : Cartons/Wooden cases

Delivery Time : 15-30 work days

Payment Terms : L/C, D/A, D/P, T/T, MoneyGram, Western Union

Supply Ability : 100-1000 set per week

Product Name : Pneumatic High Pressure Ball Valve

Valve Type : High Pressure Ball Valve

Material : Stainless Steel

Connection Type : Flanged

Operation : Pneumatic

Application : Oil, Gas, Water, Chemical

Pressure Class : 150, 300, 600, 900, 1500, 2500

Pressure Rating : 1000-3000 psi

Design : Floating Ball, Trunnion Mounted

Seat Material : PTFE, EPDM

Size : 1/2-8 inch

Standard : API, ANSI, DIN, JIS,

Temperature Range : -40 to 135 degree Celsius

Contact Now

DN40 Industrial Pneumatic Flange CF8 Ball Valve Two-Piece

1. Description:

Pneumatic ball valve switch light, small size, can be made into a large caliber, reliable sealing, simple structure, easy maintenance, sealing surface and sphere are often in a closed state, not easy to be washed by the medium, in various industries have been widely used.

2. Specification:

FABIA Valve Parameter List
Valve type: DN40 Industrial Pneumatic Flange CF8 Ball Valve Two-Piece
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........

3. Features:

  • Fluid resistance is small, and its resistance coefficient is equal to that of the pipe segment of the same length.
  • Simple structure, small size, light weight.
  • Tight and reliable, the sealing surface material of the ball valve is widely used in plastic, good sealing, and has also been widely used in vacuum systems.
  • Easy to operate, open and close quickly, from full open to full close as long as the rotation of 90 degrees, easy to remote control.
  • Convenient maintenance, pneumatic ball valve structure is simple, the sealing ring is generally active, disassembly and replacement are more convenient.
  • When fully open or fully closed, the sealing surface of the ball and the seat is isolated from the medium, and the medium will not cause erosion of the valve sealing surface when it passes through.
  • Wide range of application, small diameter to a few millimeters, large to a few meters, from high vacuum to high pressure can be applied. Pneumatic two-piece ball valve has been widely used in petroleum, chemical, power generation, paper making, atomic energy, aviation, rockets and other departments, as well as People's Daily life.

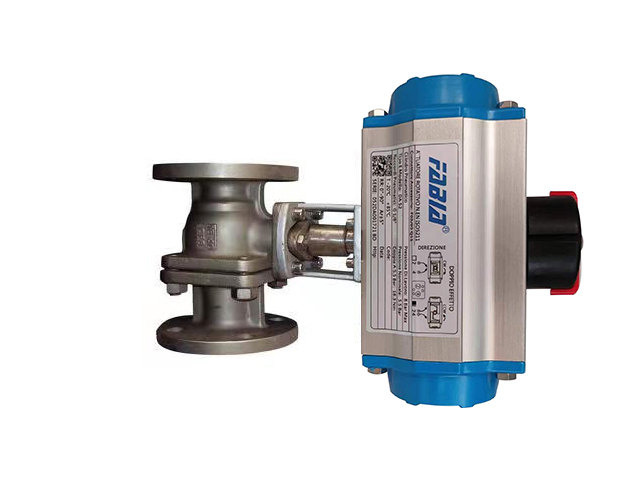

DN40 Industrial Pneumatic Flange CF8 Ball Valve High Pressure Two Piece

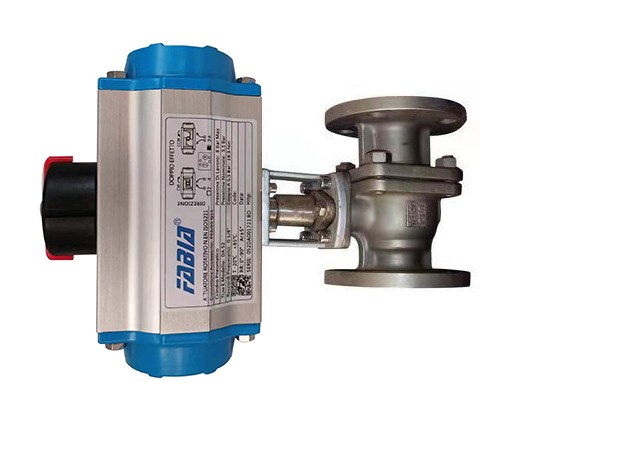

DN40 Industrial Pneumatic Flange CF8 Ball Valve High Pressure Two Piece
